Profiling Go Applications in the Right Way with Examples

Authors
  • Name
    Twitter

Illustration created for “A Journey With Go,” made from the original Go Gopher, created by Renee French.

What is profiling?

Profiling is an essential technique for analyzing applications and identifying bottlenecks hindering the application’s performance. It is helpful to detect which parts of the code are taking too long to execute or consuming too many resources, such as CPU and memory.

Table of Contents

Methods of Profiling

You have three methods for profiling.

Types of Profiling

  • CPU (collects data on the application CPU usage)
  • Heap / Memory (collects data on application memory usage)
  • Goroutine (identifying the functions that create the most number of goroutines)
  • Block (identifying the functions that cause the most blocking)
  • Thread (identifying the functions that create the most threads)
  • Mutex (identifying the functions that have the most contention)

In this article, I mainly focus on CPU and Memory profiling with the abovementioned methods.

1. Benchmarking

I wanted to implement the famous Two Sum algorithm problem. I don’t focus on the details about it. Let’s run

go test -bench=.

-bench option runs all of the benchmark tests in our project.

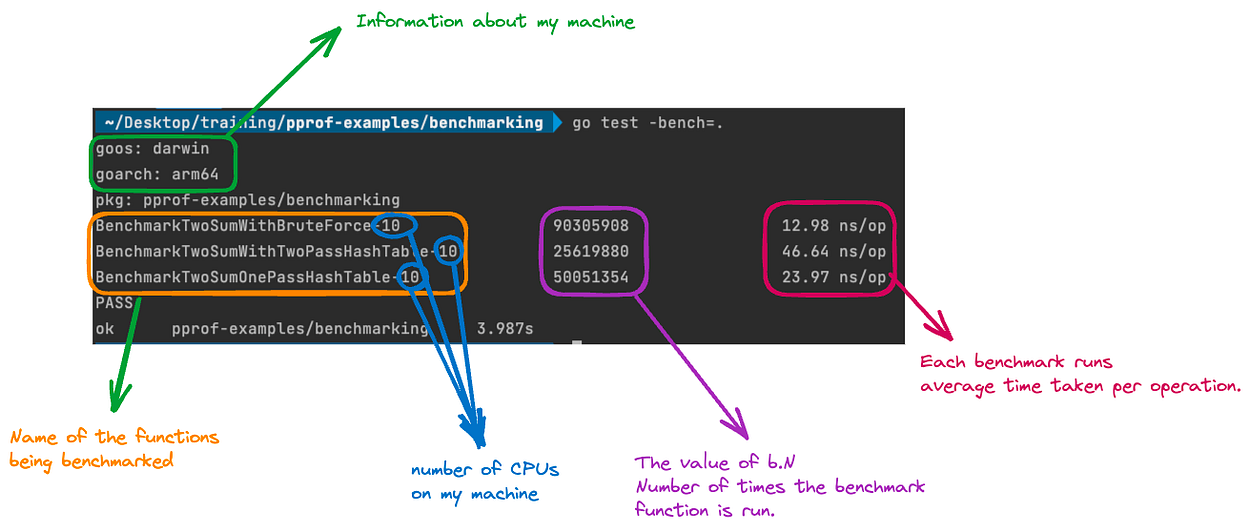

Go test bench output.

Based on the output above, TwoSumWithBruteForce is the most efficient one compared to others. Don’t forget that it depends on the function’s inputs. If you give a large array, you will get different results. 😅

If you type go help testflag , you will see lots of flags and their explanations. Like count, benchtime etc. I will explain the most used ones.

  • If you want to run a specific function, you can specify it as

go test -bench='BenchmarkTwoSumWithBruteForce'

  • By default, benchmark functions run only once; if you want to override this behavior, you can use count a flag. For example,

go test -bench='.' -count=2

gives output as shown below.

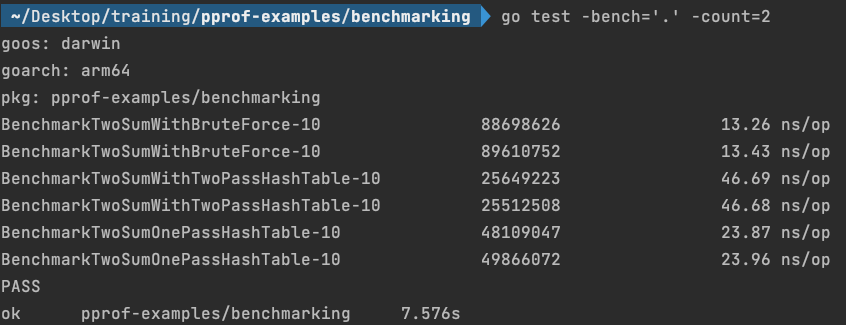

Benchmarking with count flag

  • By default, Go decides how long each benchmarking operation runs. You can override this by providing. benchtime='2s' .

You can use count and benchtime flags together for better measurement of your benchmarked functions. You can also refer to this article.

You can find source code here!

In the real world, our functions can be complex and long. The timing is not helpful here, so we need to extract the CPU and memory profile for further analysis. You can type

go test -bench='.' -cpuprofile='cpu.prof' -memprofile='mem.prof'

Let’s analyze them using the pprof tool.

1.1 Profiling CPU

If you type in

go tool pprof cpu.prof

and hit enter, you will have a pprof interactive console.

go tool pprof cpu.prof output Let’s take a look at the most popular ones.

  • You can type top15 to see the top 15 resource-intensive functions during the execution time. (15 indicates the number of nodes that will displayed.)

To be clear, let’s assume that we have a A function.

func A() {
B() // takes 1s
DO STH DIRECTLY // takes 4s
C() // takes 6s
}

Flat and cumulative values are calculated as; A=4 for flat and A=11 for cum (1s + 4s + 6s).

  • If you want to sort based on cum value, you can type top15 -cum . You can also use sort=cum and top15 commands respectively.
  • If you want to get more verbose output in the top, you can specify granularity option. For example, if we pass granularity=lines , it shows the lines of the functions.

top15 output with granularity lines

Thanks to this, we can identify specific lines of the function causing performance issues. 😌

  • The output also shows us runtime and user-defined functions together. If you want to focus on only your functions, you can provide hide=runtime and execute top15 again.

top15 with hide option

You can reset it by typing hide= .

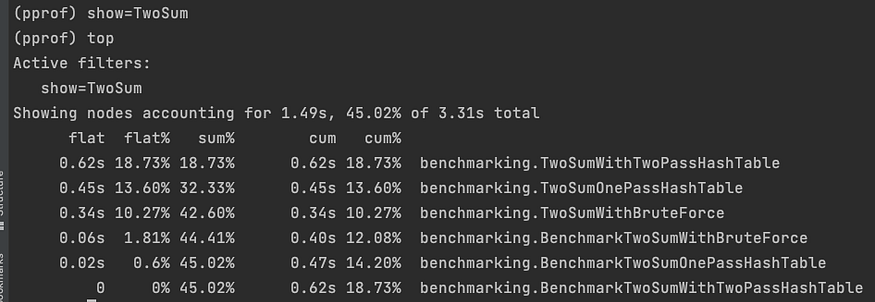

  • Conversely, you can use show command. For example, by typing show=TwoSum

  • If you want to focus on a specific node, you can use focus command. Let’s focus on TwoSumOnePassHashTable . The output is displayed as

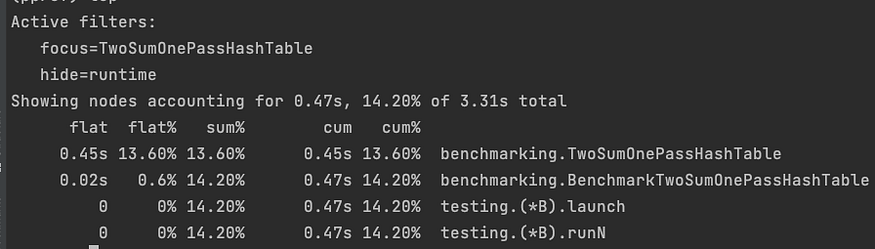

top output with hide and focus together

You can reset it by typing focus= .

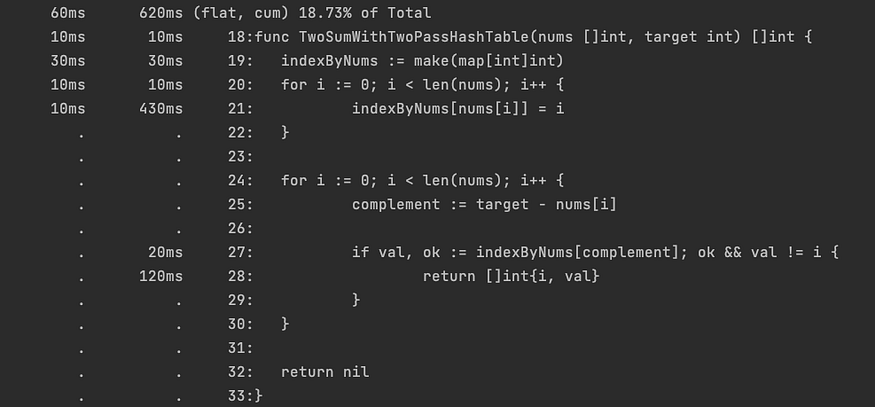

  • If you want to get details of the function, you can uselist command. For example, I want to get details about TwoSumWithTwoPassHashTable function. Type list TwoSumWithTwoPassHashTable

list TwoSumWithTwoPassHashTable output

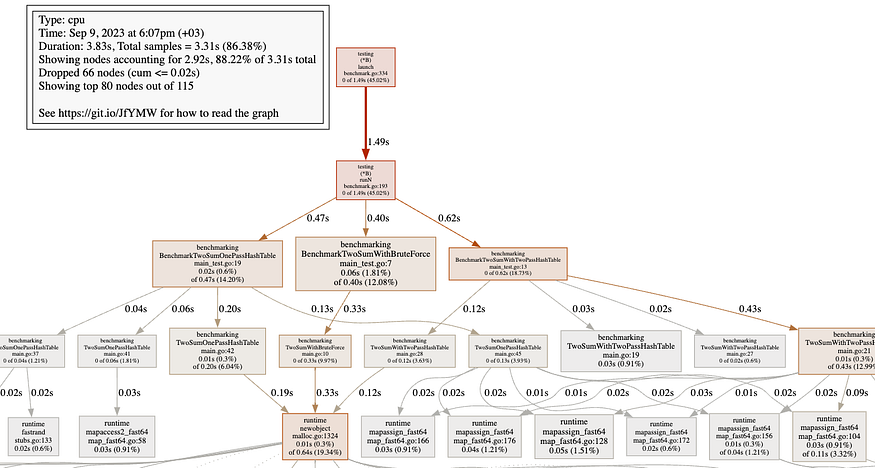

  • If you want to see a graphical representation of the call stack, you can type web .

web output

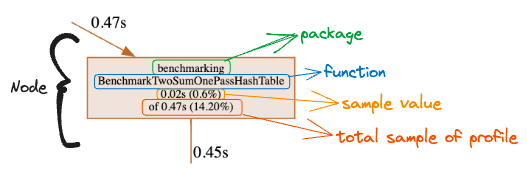

Node detail

I will give more details about reading the graphs in the following sections.

  • You can also type gif or pdf to share profiling data in the corresponding format with someone. 😃

1.2 Profiling Memory

If you type in go tool pprof mem.prof and hit enter

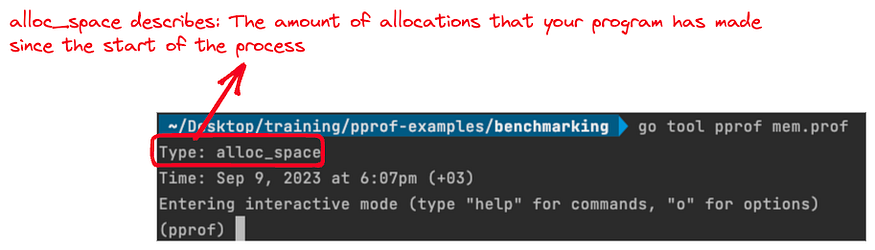

go tool pprof mem.prof output

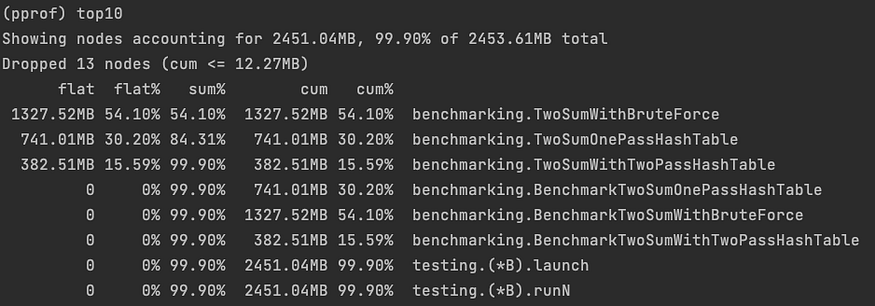

top10 output

Note that flat and cum are the same thing mentioned above but only different measurements (ms in CPU, MB in Memory profiling).

  • list command:

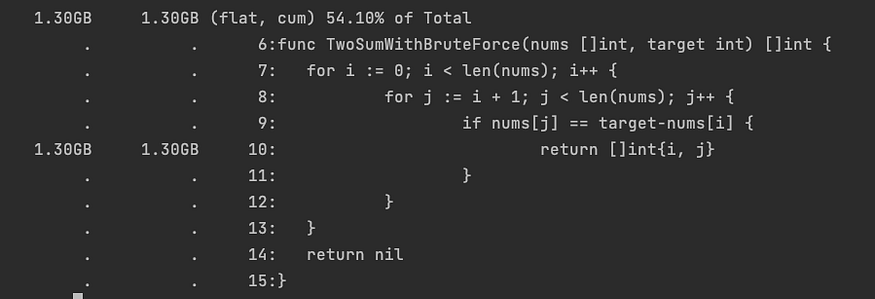

list TwoSumWithBruteForce output

  • web command:

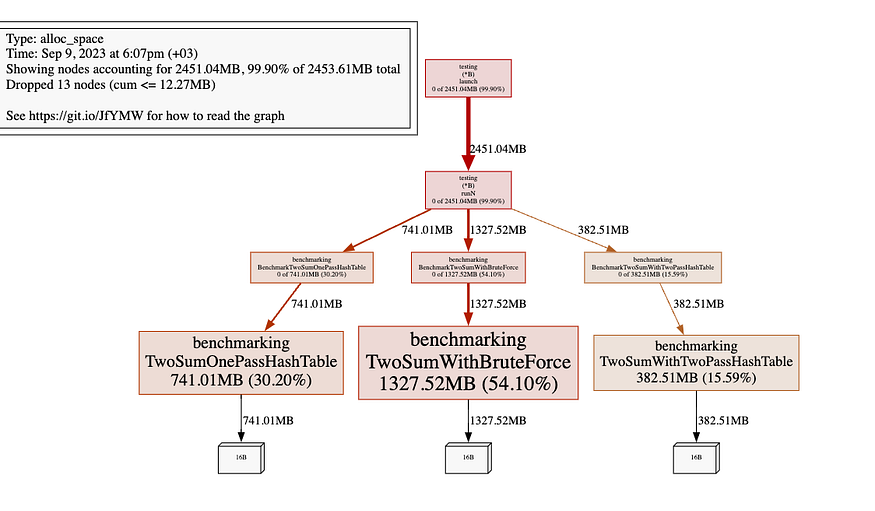

    web command output

We can use all the commands mentioned in the CPU profiling section.

Let’s take a look at another method, runtime/pprof. 🚀

2- Runtime profiling with runtime/pprof.

Benchmark tests are useful for an isolated function’s performance but are insufficient to understand the whole picture. Here runtime/pprof shines 💠.

2.1 Profiling CPU

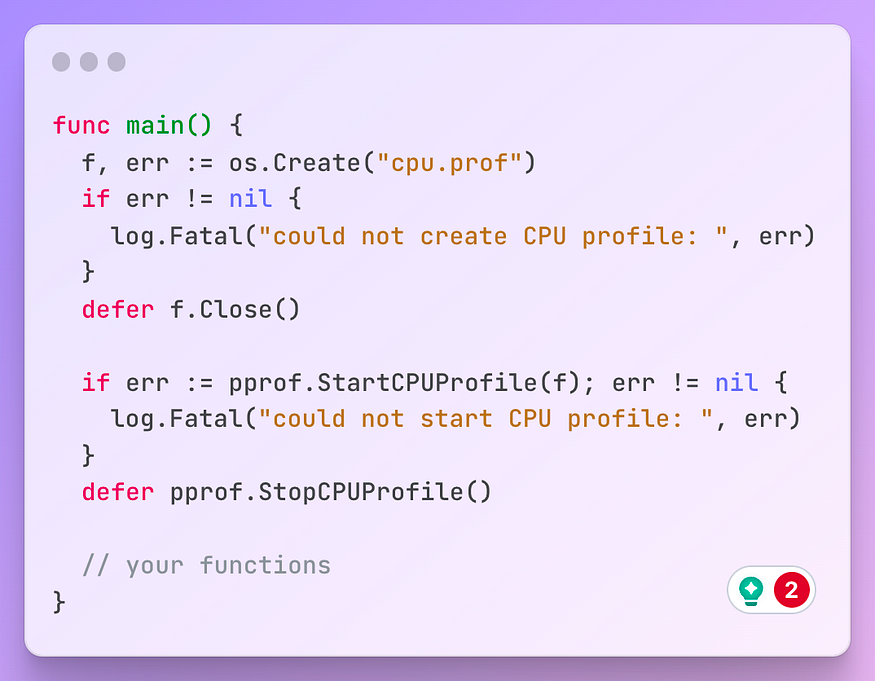

In benchmark tests, CPU and memory profiling are supported built-in. If you need to add CPU profiling support to your application, you must enable it first.

If you run go run . here, you will see the generated cpu.prof file. You can analyze it go tool pprof cpu.prof as mentioned in the benchmarking section.

In this section, I want to introduce to you one of my favorite features is pprof.Labels . This feature is available only on CPU and goroutine profiling.

If you want to add a label/labels to a specific function, you can use [pprof.Do](https://pkg.go.dev/runtime/pprof#Do) func.

pprof.Do(ctx, pprof.Labels("label-key", "label-value"), func(ctx context.Context) {
// execute labeled code
})

For example,

Adding a label to a specific function

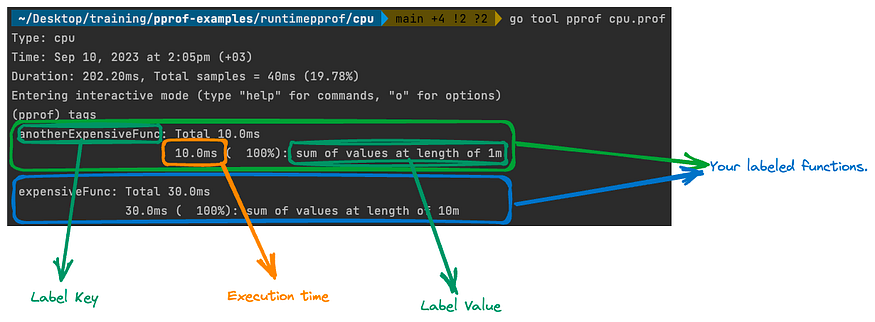

In the pprof interactive console, type tags . It shows your labeled functions with useful information.

tags output

You can do lots of things with labels. You can get more information from this article.

pprof also has a great web interface. It allows us to analyze profiling data using various visualizations.

Type go tool pprof -http=:6060 cpu.prof , localhost:6060 will be opened. (To be more clear, I removed pprof.Labels)

Let’s dive into graph representation.

Graph for CPU analysis

Node color, font size, edge weight, and many more have different meanings. Please refer to it here. This visualization allows us to identify and fix performance issues more easily.

After clicking a node in the graph, you can refine it. It allows us to filter the visualization based on our choice. I showed some of the above (focus, hide, etc.).

Refine options

You can also see other visualization options.

View options

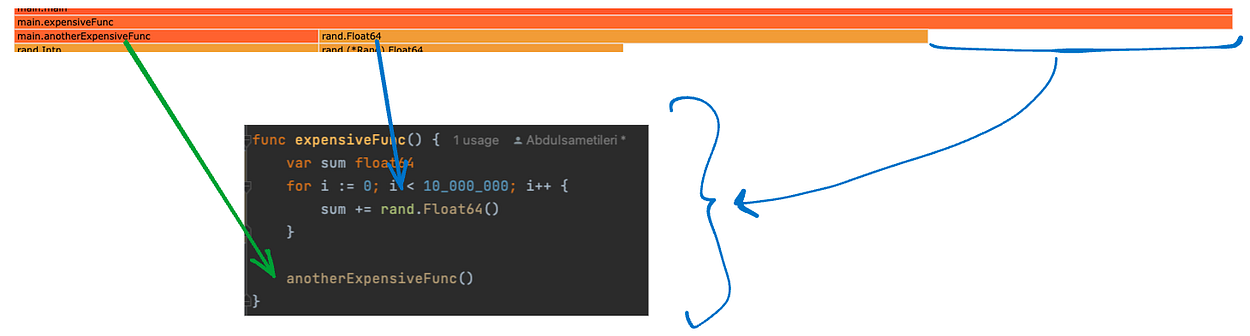

I showed peek and source (as the list command), so I want to introduce you to Flame Graph. Flame graphs provide a high-level view of where time is spent in your code.

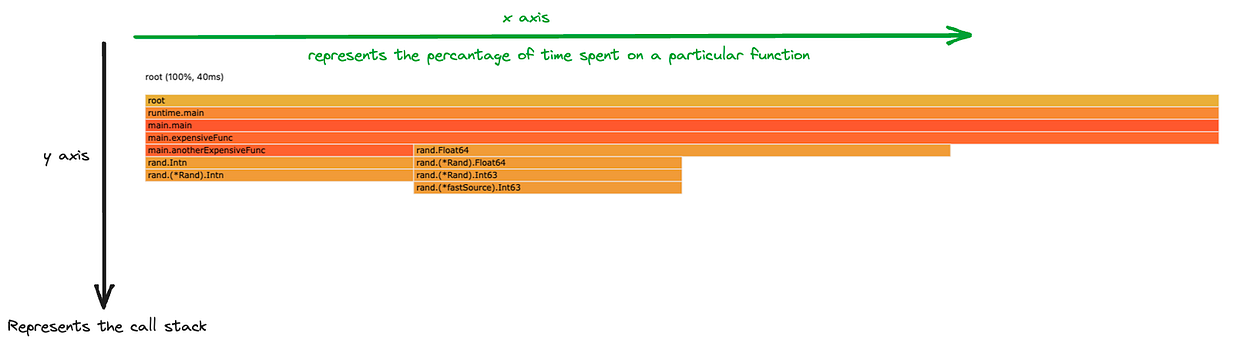

Flame Graph

Each function is represented by a colored rectangle where the width of the rectangle is proportional to the amount of time spent in that function.

You can find the source code here!

2.2 Profiling Memory

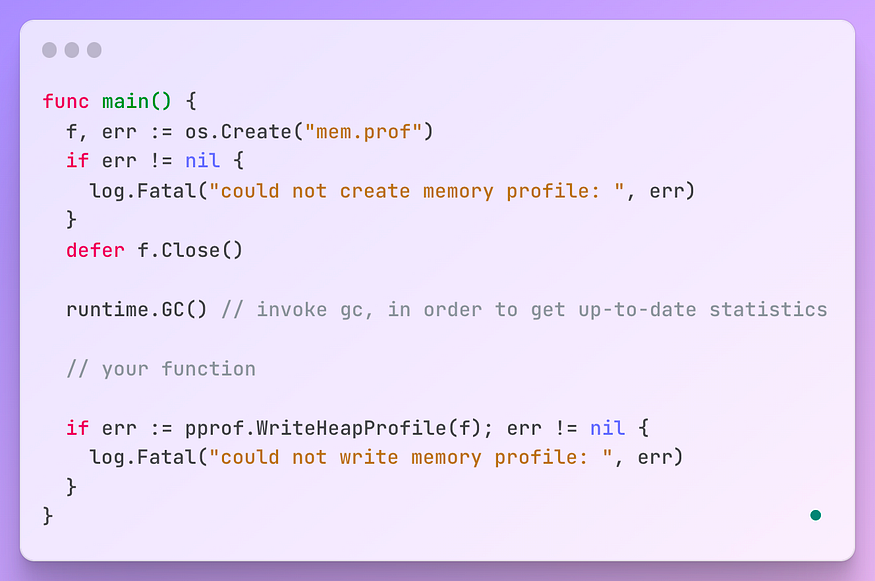

If you need to add memory profiling support to your application, you must enable it first.

You can find the source code here.

If you run go run . here, you will see the generated mem.prof file. You can analyze it go tool pprof mem.prof as mentioned in the benchmarking section.

I want to introduce to you two more useful commands tree and peek .

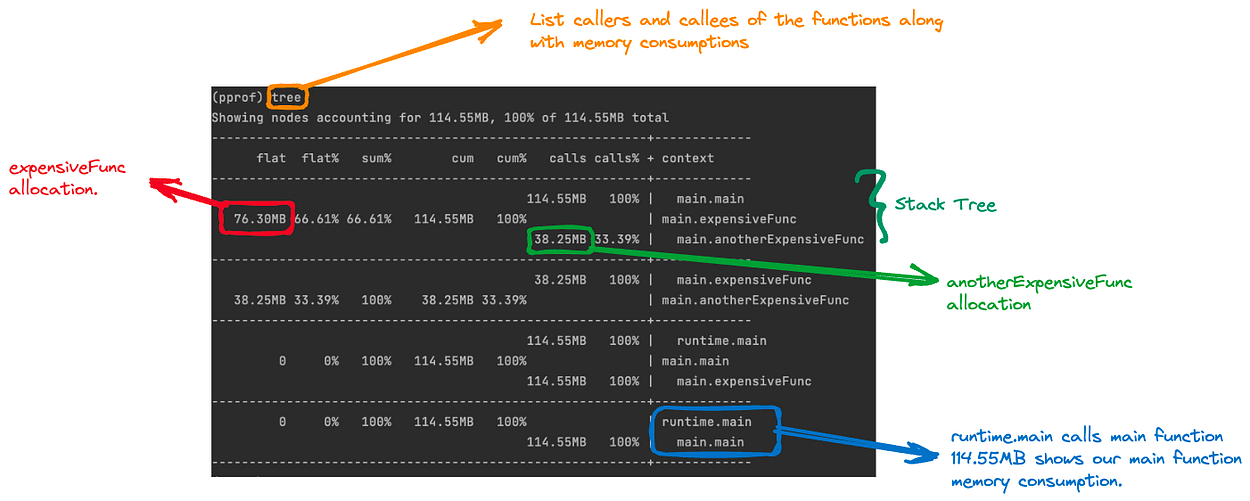

  • The tree shows all callers and callees of the execution flow.

tree output

This allows us to identify the execution flow and spot the objects that consume the most memory. (Don’t forget to use _granularity=lines_ It provides a more readable format.)

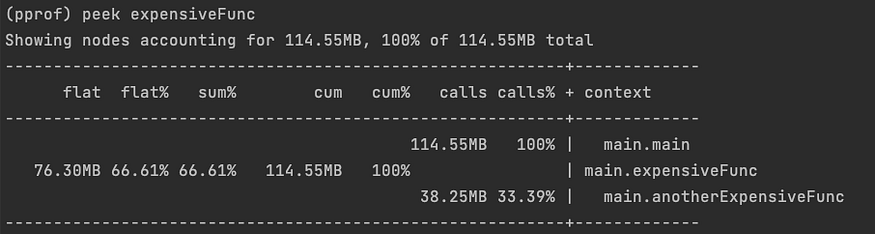

  • If you want to see a specific function execution flow, you can use peek command. For example peek expensiveFunc shows

  • You can also use the pprof web interface for memory analysis. Type go tool pprof -http=:6060 mem.prof , localhost:6060 will be opened.

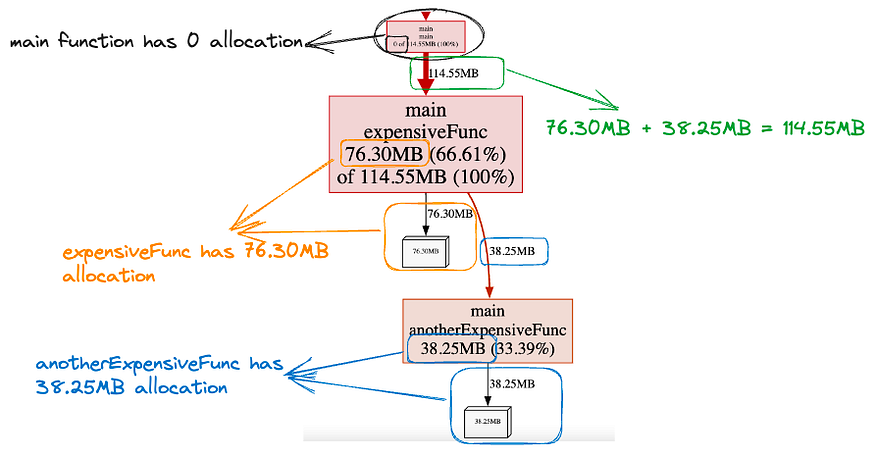

Graph for memory analysis

You can find the source code here!

3. Web profiling with net/http/pprof

The runtime/pprof package offers a lower-level interface for our Go program’s performance. On the other hand, net/http/pprof provides a higher-level interface for profiling. It allows us to collect our program profiling information through HTTP 💃 All you can do is:

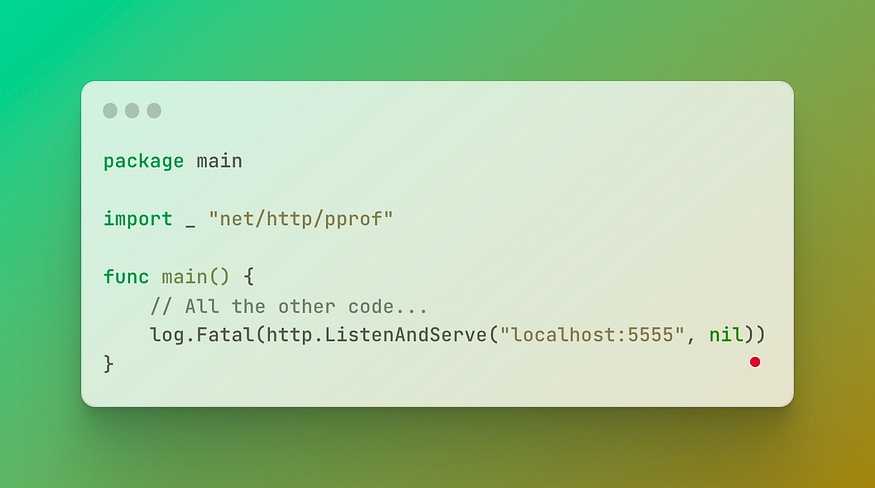

Adding net HTTP pprof

If you type localhost:5555/debug/pprof , you will see all available profiles on your browser if you are not using stdlib, check fiber, gin, or echo pprof implementations.

debug/pprof view

All other usages and parameters are documented here. Let’s review popular ones.

Getting CPU profile and Tricks

go tool pprof [http://localhost:5555/debug/pprof/profile?seconds=30](http://localhost:5555/debug/pprof?profile%3Fseconds=30)

During the CPU profiling, be aware

runtime.mallogc that → means you can optimize the number of small heap allocations.

syscall.Read or syscall.Write that → The application spends a significant amount of time in Kernel mode. You can try to do IO/buffering.

Getting Heap (a sampling of live objects’ memory allocations) profile and Tricks

_go tool pprof_ [_http://localhost:5555/debug/pprof/heap_](http://localhost:5555/debug/pprof?profile%3Fseconds=30)

_go tool pprof_ [_http://localhost:5555/debug/pprof/heap_?gc=1](http://localhost:5555/debug/pprof/heap?gc=1)

Personally, I loved playing with GC parameters for diagnosing problems. For example, if your application has memory leak issues, you can do the following:

  • Trigger GC (Go to /debug/pprof/heap?gc=1 in your browser)
  • Download heap data; give the downloaded file name -> file1
  • Wait for seconds/minutes.
  • Trigger another GC (Go to /debug/pprof/heap?gc=1 in your browser)
  • Download another heap of data; give the downloaded file name -> file2
  • Compare using the diff_base

go tool pprof -http=:6060 -diff_base file2 file1

diff_base output

Getting Allocation (a sampling of all past memory allocations) profile and Tricks

_go tool pprof_ [_http://localhost:5555/debug/pprof/a_](http://localhost:5555/debug/pprof?profile%3Fseconds=30)llocs

During the allocs profiling, you can do it

  • If you saw bytes.growSlice , you should think about using [sync.Pool](https://pkg.go.dev/sync#Pool) .
  • If you saw your functions, check whether you define fixed capacity in your slice or maps.

Thank you for reading so far 💛. All feedback is welcome 🙏 Special thanks to Emre Odabas for the review and Mert Bulut for encouraging me.
